Lars Thrane LT-4100S GMDSS Certus 100 Midband Terminal

The LT-4100S GMDSS system is an Iridium Certus 100 GMDSS Satcom System. It meets all standards and certification requirements needed for GMDSS communications equipment (MED, Wheelmark).

LT-4100S GMDSS – developed and manufactured by Lars Thrane A/S – offers Distress Alert, Safety Voice, and Maritime Safety Information (MSI) as well as Ship Security Alert System (SSAS) and Long Range Identification & Tracking (LRIT).

PERFORMANCE

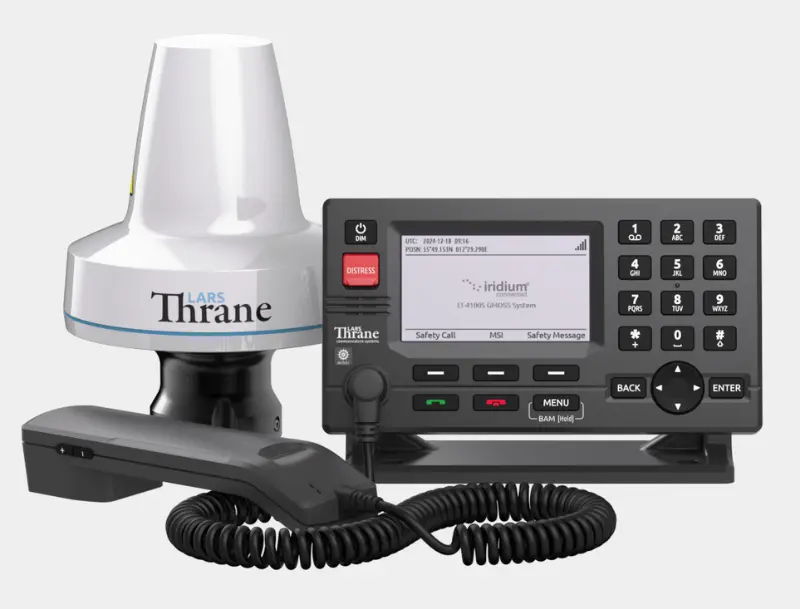

The LT-4100S GMDSS system has voice and data capabilities with 100% global coverage. The LT-4100S GMDSS system consists of a control unit, handset, and antenna unit. A single cable solution connects the control unit with the antenna unit. Using a standard coaxial cable, up to 500 meters of separation between the units can be obtained, giving freedom to mount the antenna in the best possible location, with free line of sight to the satellites.

The LT-4100S GMDSS system is designed for the Iridium Certus GMDSS Safety Services and can be used as the primary satellite communication product on vessels, covering the basic communication needs in terms of connectivity between the ship and shore. The LT-4100S GMDSS system also provides voice, IP-data, vessel tracking, and other Iridium services with competitive airtime rates, making it the perfect satellite communication product on board any vessel.

The LT-4100S GMDSS System is designed and built for the demanding and rough environment at sea and with an operational temperature range from -40⁰C to +55⁰C (-40⁰F to +131⁰F).

INSTALLATION

The LT-4100S GMDSS system is very easy to install. Everything is included in the box to get started with the installation and operating the LT-4100S GMDSS system. The control unit can be installed using either a bracket mount or flush mount. The antenna unit can be mounted using either a pole mount (1.5″ pipe, Ø38.8mm) or pole mount (2.0″ pipe, Ø53.0mm). The control unit has a large 4.3″ TFT display, from where the system can be operated with overview and ease. The built-in webserver can be used for service and maintenance.

More than 40 years of experience have been put into the design and construction of the LT-4100S GMDSS system, with an exceptional performance and specification level.

• Fully MED/Wheelmark approved Iridium Certus® 100 GMDSS terminal

• Distress alert & distress call

• Ship Security Alert System (SSAS) & Long Range Identification & Tracking (LRIT)

• IP-data: 22 kbps (up) / 88 kbps (down) & two individual voice channels

• Up to 500m antenna cable
